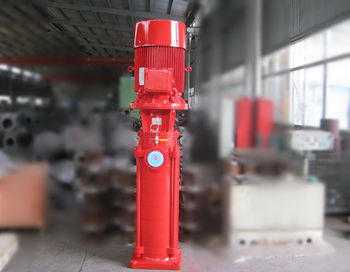

XBD-DL vertical multi-stage fire pump

XBD-DL vertical multi-stage fire pump is mainly used for pressurized water supply of fire-fighting system pipelines, constant pressure water supply for high-rise buildings, etc.

Product introduction:

The XBD-DL vertical multi-stage fire pump is a fire pump with a vertical, multi-stage, and segmented structure. It has the advantages of high efficiency, low operating noise, good cavitation resistance, reasonable structure, and long service life.

use:

XBD-DL vertical multi-stage fire pump is mainly used for pressurized water supply of fire fighting system pipelines, and constant pressure water supply for fire fighting of high-rise buildings.

Conditions of Use:

1. The medium used should be similar to water, with a kinematic viscosity <150mm2/s, without hard particles, and without corrosive properties;

2. The environment where the pump is used is less than 1000 meters above sea level. If it is exceeded, it should be mentioned in the order so that our factory can provide you with more reliable products;

3. The operating temperature of the medium is -15℃～120℃;

4. System working pressure≤2.5MPa;

5. The ambient temperature should be lower than 40℃, and the relative humidity should be lower than 95%

Performance parameter table:

型號	級數	流量		揚程	轉速	功率	效率	汽蝕余量	外形尺寸			重量
型號	級數	L/S	m3/h	M	r/min	kw	%	M	H	H2	H3	Kg
XBD2.36/1.72-40DL×2	2	1.36 1.72 2.05	4.9 6.2 7.4	23.6	1450	1.5	37 40 39	3.19	938	170	/	152
XBD3.54/1.72-40DL×3	3			35.4		2.2			1043	230	154	169
XBD4.72/1.72-40DL×4	4			47.2		3			1103	290	214	186
XBD5.90/1.72-40DL×5	5			59		4			1183	350	274	203
XBD7.08/1.72-40DL×6	6			70.8		4			1243	410	334	220
XBD8.26/1.72-40DL×7	7			82.6		5.5			1378	470	394	237
XBD9.44/1.72-40DL×8	8			94.4		5.5			1438	530	454	254
XBD10.6/1.72-40DL×9	9			106.2		7.5			1538	590	514	271
XBD11.8/1.72-40DL×10	10			118		7.5			/	/	/	/
XBD12.9/1.72-40DL×11	11			129.8		7.5			/	/	/	/
XBD14.1/1.72-40DL×12	12			141.6		11			/	/	/	/
XBD2.44/3.5-50DL×2	2	2.5 3.5 4.5	9 12.6 16.2	24.4	1450	3	50 54 52	2.58 2.66 3.16	1084	189	/	15.3
XBD3.66/3.5-50DL×3	3			36.6		3			1152	257	179	18
XBD4.88/3.5-50DL×4	4			48.8		4			1240	325	247	23.1
XBD6.10/3.5-50DL×5	5			61		5.5			1383	393	315	33
XBD7.32/3.5-50DL×6	6			73.2		5.5			1451	461	383	24
XBD8.54/3.5-50DL×7	7			85.4		7.5			1559	529	451	15
XBD9.76/3.5-50DL×8	8			97.6		7.5			1629	597	519	18
XBD10.9/3.5-50DL×9	9			109.8		11			1780	665	587	22
XBD12.2/3.5-50DL×10	10			122		11			/	/	/	/
XBD3.2/8.3.5-65DL×2	2	5 8.33 9.72	18 30 35	32	1450	5.5	56 62 60	2.41 2.82 3.03	1306	199	/	349
XBD4.8/8.3-65DL×3	3			48		7.5			1426	279	177	390
XBD6.4/8.3-65DL×4	4			64		11			1591	359	257	460
XBD8.0/8.3-65DL×5	5			80		15			1716	439	337	509
XBD9.6/8.3-65DL×6	6			96		15			1796	519	417	537
XBD11.2/8.3-65DL×7	7			112		18.5			1901	599	497	603
XBD12.8/8.3-65DL×8	8			128		22			2021	679	577	639
XBD14.4/8.3-65DL×9	9			144		22			2101	759	657	667
XBD16.0/8.3-65DL×10	10			160		30			/	/	/	720
型號	級數	流量		揚程	轉速	功率	效率	汽蝕余量	外形尺寸			重量
型號	級數	L/s	m3/h	M	r/min	kw	%	M	H	H2	H3	Kg
XBD4.0/13.8-80DL×2	2	9 13.8 18.1	32.4 50 65.2	40	1450	11	60 70 66	2.2 2.5 2.8	1515	277	/	461
XBD6.0/13.8-80DL×3	3			60		15			1649	366	235	522
XBD8.0/13.8-80DL×4	4			80		22			1865	455	315	608
XBD10.0/13.8-80DL×5	5			100		30			2030	544	395	728
XBD12.0/13.8-80DL×6	6			120		30			2120	633	475	768
XBD14.0/13.8-80DL×7	7			140		37			2270	722	555	822
XBD16.0/13.8-80DL×8	8			160		45			2385	811	635	898
XBD18.0/13.8-80DL×9	9			180		45			2475	900	715	938
XBD20.0/13.8-80DL×10	10			200		55			/	/	/	/
XBD4.0/20-100DL×2	2	14 20 24	50.4 72 86.4	40	1450	15	62 72 71	2.2 2.8 3.1	1616	293	/	521
XBD6.0/20-100DL×3	3			60		18.5			1784	396	220	599
XBD8.0/20-100DL×4	4			80		30			1932	499	232	727
XBD10.0/20-100DL×5	5			100		37			2060	602	426	781
XBD12.0/20-100DL×6	6			120		37			2248	705	529	821
XBD14.0/20-100DL×7	7			140		45			2421	808	632	897
XBD16.0/20-100DL×8	8			160		55			2524	911	735	1044
XBD18.0/20-100DL×9	9			180		55			2677	1014	838	1084
XBD20.0/20-100DL×10	10			200		75			/	/	/	/
XBD4.0/28-100DL×2	2	20 27.7 35	72 100 126	40	1450	18.5	65 72 70	2.9 3.5 4.4	1616	293	/	554
XBD6.0/28-100DL×3	3			60		30			1784	396	220	687
XBD8.0/28-100DL×4	4			80		37			1932	499	323	746
XBD10.0/28-100DL×5	5			100		45			2060	602	426	827
XBD12.0/28-100DL×6	6			120		55			2248	705	529	979
XBD14.0/28-100DL×7	7			140		75			2421	808	632	1159
XBD16.0/28-100DL×8	8			160		75			2524	911	735	1204
XBD18.0/28-100DL×9	9			180		90			2677	1014	838	1354
XBD20.0/28-100DL×10	10			200		90			/	/	/	/
型號	級數		流量	揚程	轉速	功率	效率	汽蝕余量	外形尺寸			重量
型號	級數	L/s	m3/h	M	r/min	kw	%	M	H	H2	H3	Kg
XBD4.0/42-150DL×2	2	30 41.6 50	108 150 180	40	1450	30	75 80 78	2.2 2.8 2.7	1680	315	/	569
XBD6.0/42-150DL×3	3			60		37			1840	430	260	707
XBD8.0/42-150DL×4	4			80		45			2020	545	375	771
XBD10.0/42-150DL×5	5			100		55			2260	600	490	857
XBD12.0/42-150DL×6	6			120		75			2445	775	605	1060
XBD14.0/42-150DL×7	7			140		75			2610	890	720	1245
XBD16.0/42-150DL×8	8			160		90			2725	1005	835	1295
XBD4.0/45-150DL×2	2	30 44.4 50	108 160 180	40	1450	37	72 76 73	3.1 3.5 3.8	1995	350	/	873
XBD6.0/45-150DL×3	3			60		55			2235	480	235	1086
XBD8.0/45-150DL×4	4			80		75			2435	610	338	1291
XBD10.0/45-150DL×5	5			100		90			2615	740	441	1466
XBD12.0/45-150DL×6	6			120		110			2900	870	544	1633
XBD14.0/45-150DL×7	7			140		132			3075	1000	647	1803
XBD16.0/45-150DL×8	8			160		132			3210	1130	750	1873
XBD18.0/45-150DL×9	9			180		160			3340	1260	853	2003
XBD4.0/83-200DL×2	2	58.3 83.3 100	210 300 360	40	1450	55	70 79 78	4.2 5 5.5	2010	425	/	983
XBD6.0/83-200DL×3	3			60		75			2320	755	355	1196
XBD8.0/83-200DL×4	4			80		110			2660	725	505	1845
XBD10.0/83-200DL×5	5			100		132			2860	875	655	1975
XBD12.0/83-200DL×6	6			120		160			3010	1025	805	2120
XBD6.0/80-200DL×2	2	50 80 90	1, , , 80 288 324	60	1450	75	71.2 77.9 76.9	3 3.7 4.4	2185	425	/	/
XBD9.0/80-200DL×3	3			90		110			2355	575	355	/
XBD12.0/80-200DL×4	4			120		132			2795	725	505	/
XBD15.0/80-200DL×5	5			150		160			2945	875	655	/
XBD18.0/80-200DL×6	6			180		200			3095	1025	805	/
