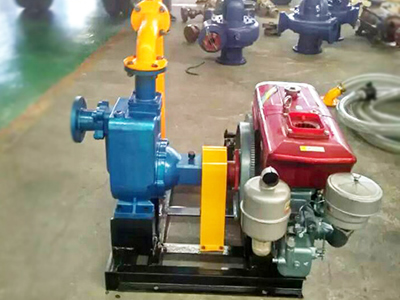

XBC-ZW small portable diesel emergency fire hydrant pump
XBC-ZW small portable diesel emergency fire hydrant pump is suitable for emergency fire hydrant pumps in chemical, petroleum, pharmaceutical, mining, food, power plant and municipal sewage engineering, public facility sewage, river pond breeding and other industries.
product description:
XBC-ZW small portable diesel engine emergency fire hydrant pump, like a general clean water self-priming pump, does not need to install a bottom valve, does not need to be filled with water, but also can pump large solid particles with a diameter of 60 and a fiber length of 60 Dirt, sediment, waste mine impurities, fecal treatment and all engineering sewage and colloidal liquids that are 1.5 times the diameter of the impeller, completely reduce the labor intensity of manpower, and are easy to install and use, and require less maintenance.
Scope of application:
ZW self-priming sewage pump is suitable for chemical, petroleum, pharmaceutical, mining, papermaking, fiber, pulp, textile, food, power plant and municipal sewage engineering, public facility sewage, river pond breeding and other industries.
product advantages:
1. Strong sewage discharge capacity: The special impeller anti-blocking design ensures that the pump is highly efficient and non-existent.
2. The ZW self-priming sewage pump is highly efficient and energy-saving: it adopts a hydraulic model, and its efficiency is 3 to 5 higher than that of a general self-priming pump.
3. Good self-priming performance: The self-priming height is 1 meter higher than the general self-priming pump, and the self-priming time is shorter.
technical parameter:
Flow rate: 5-800m3/h
Head: 12-60m
Motor power: 2.2-55KW
Speed: 1450-2900r/min
Caliber: φ25-φ300
Medium temperature: ≤100℃
Self-priming height: 4.5-6.0m
Performance parameters:
|
型號
|
流量Q
(m3/h) |
揚程
(m) |
電機功率
(KW) |
轉(zhuǎn)速
(r/min) |
|
25ZW8-15
|
8
|
15
|
1.5
|
2900
|
|
32ZW10-20
|
10
|
20
|
2.2
|
2900
|
|
32ZW20-12
|
20
|
12
|
2.2
|
2900
|
|
40ZW20-12
|
20
|
12
|
2.2
|
2900
|
|
40ZW10-20
|
10
|
20
|
2.2
|
2900
|
|
40ZW15-30
|
15
|
30
|
3
|
2900
|
|
50ZW10-20
|
10
|
20
|
2.2
|
2900
|
|
50ZW20-12
|
20
|
12
|
2.2
|
2900
|
|
50ZW15-30
|
15
|
30
|
3
|
2900
|
|
65ZW30-18
|
30
|
18
|
4
|
1450
|
|
65ZW20-30
|
20
|
30
|
5.5
|
2900
|
|
65ZW15-30
|
15
|
30
|
3
|
2900
|
|
65ZW20-14
|
20
|
14
|
2.2
|
2900
|
|
65ZW25-40
|
25
|
40
|
7.5
|
2900
|
|
65ZW30-50
|
30
|
50
|
11
|
2900
|
|
80ZW40-16
|
40
|
16
|
4
|
1450
|
|
80ZW40-50
|
40
|
50
|
18.5
|
2900
|
|
80ZW65-25
|
65
|
25
|
7.5
|
2900
|
|
80ZW80-35
|
80
|
35
|
15
|
2900
|
|
80ZW50-60
|
50
|
60
|
22
|
2900
|
|
100ZW100-15
|
100
|
15
|
7.5
|
1450
|
|
100ZW80-20
|
80
|
20
|
7.5
|
1450
|
|
100ZW100-20
|
100
|
20
|
11
|
1450
|
|
100ZW100-30
|
100
|
30
|
22
|
2900
|
|
100ZW80-60
|
80
|
60
|
37
|
2900
|
|
100ZW80-80
|
80
|
80
|
45
|
2900
|
|
125ZW120-20
|
120
|
20
|
15
|
1450
|
|
125ZW200-15
|
200
|
15
|
15
|
1450
|
|
150ZW200-15
|
200
|
15
|
15
|
1450
|
|
150ZW250-25
|
250
|
25
|
45
|
2900
|
|
200ZW280-14
|
280
|
14
|
22
|
1450
|
|
200ZW300-18
|
300
|
18
|
37
|
1450
|
|
200ZW280-28
|
280
|
28
|
55
|
1450
|
|
250ZW420-20
|
420
|
20
|
55
|
1450
|
|
300ZW800-14
|
800
|
14
|
55
|
1450
|
